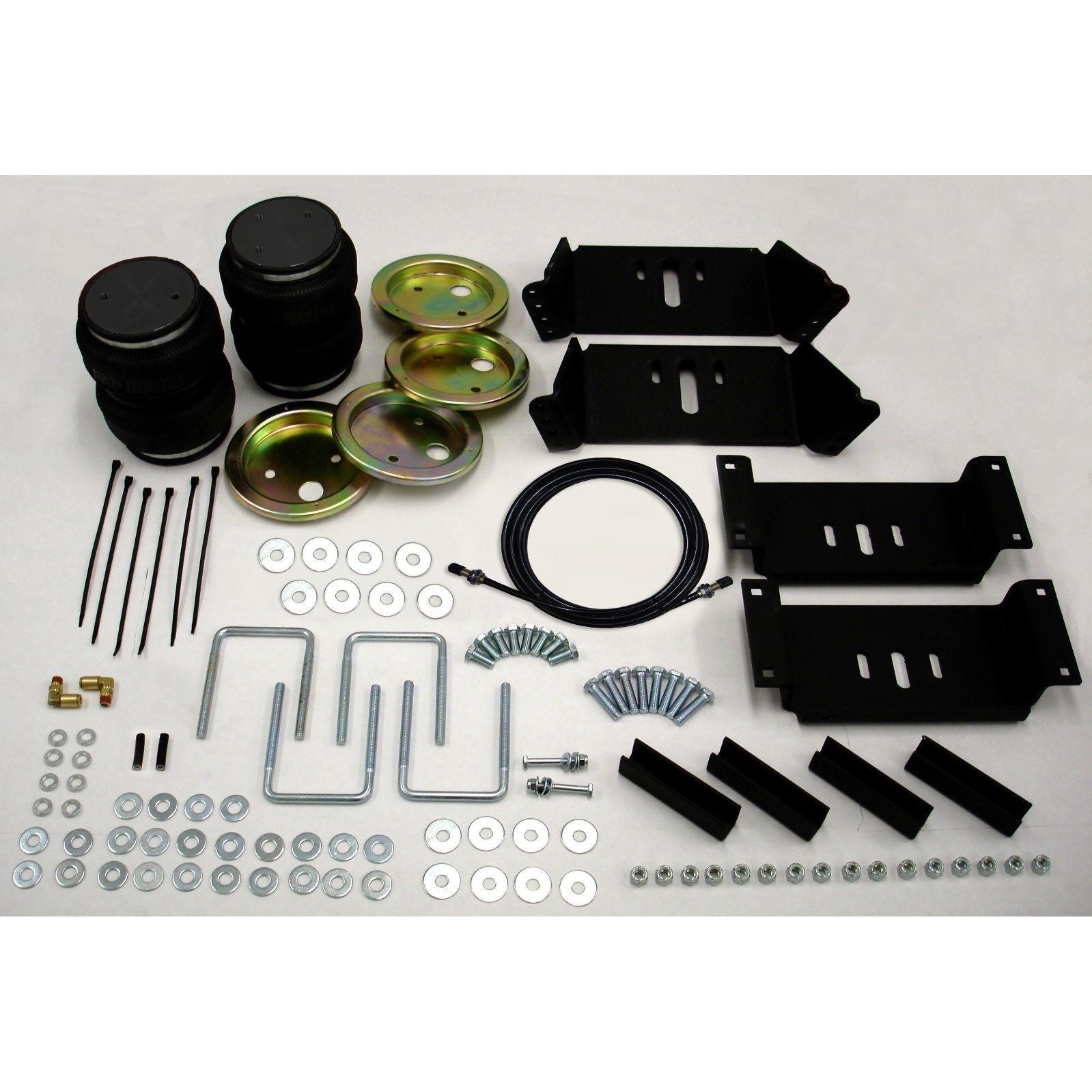

Universal Air Bag System HP10019 Air Suspension Kit PacBrake HP10019

Universal Air Bag System HP10019 Air Suspension Kit PacBrake HP10019

This air bag suspension kit is specifically designed to allow you to customize your ride by adjusting the amount of air in each spring. This kit can solve many of your everyday problems, such as vehicle SAG, SWAY, and bottoming out.  Universal Fit

Features & Benifits

    2 Ply, Double convoluted rubber springs
    CNC machined annodized aluminum end caps
    Black powder coated mounting brackets
    Air adjustable from 5-100psi
    Clean, Easy Installation

Applications:

Chevy/GMC:

1968-1987 C-3500 (1 Ton 4x2)

1973-1987 C-1500, C-2500, C-10, C-20, C-30 (1/2 Ton, 3/4 Ton & 1 Ton 4x2)

Dodge:

1969-1993 D-150 4x2 (1/2 Ton 4x2 with Heavy Loads) (Lighter loads use Kit HP10033)

1969-1993 W-100, W-150 (1/2 Ton 4x4 with Heavy Loads) (Lighter loads use Kit HP10033)

1969-1993 D-250, D-350, W-250, W-350 (3/4 Ton & 1 Ton 4x2 & 4x4)

1994-2001 Ram 1500 (1/2 Ton 4x2 with Heavy Loads) (Lighter loads use Kit HP10033)

1994-2002 Ram 2500 & 3500 (3/4 Ton & 1 Ton 4x2 & 4x4)

Ford:

1966-1996 F-100, F-150 (1/2 Ton 4x4 with Heavy Loads) (Lighter loads use Kit HP10033)

1968-1996 F-100, F-150 (1/2 Ton 4x2 with Heavy Loads) (Lighter loads use Kit HP10033)

1969-1979 F-250 (3/4 Ton 4x2 Under 7,500 GVW)

1970-1997 F-350 (1 Ton 4x2)

1980-1996 F-250 (3/4 Ton 4x2)

1980-1997 F-250 (3/4 Ton 4x4, 1997 Heavy Duty Over 8,600 GVW)

1980-1997 F-350 (1 Ton 4x4, Except Super Heavy Duty Chassis)

1997-1998 F-250 Light Duty (3/4 Ton 4x2 & 4x4 Under 7,500 GVW)

1999-2004 F-350 Super Duty (1 Ton 4x2 11,200 GVW & Under)

1998-2010 Ranger (4x2 & 4x4) (Will only fit on Ranger pickups with stock wheels and tires)

Mazda:

1998-2010 Pickups (4x2 & 4x4) (Will only fit Mazda pickups with stock wheels and tires)



This kit mounts on the outside of the frame rails.

This kit DOES require drilling!!

This kit is compatible with the Reese 5th Wheel Rail Kit #30033, 30035 & 30729. This kit MAY NOT BE compatible with B&W Turnover Ball gooseneck hitches or any other aftermarket gooseneck or fifth wheel type hitches that mount on the outside of the frame rail. Please contact me prior to purchase if your vehicle has been lifted, has oversize tires or is equipped with any aftermarket accessory to confirm compatibility!!

Your air suspension kit may vary slightly in appearance from the ones pictured or described, depending on your application.

Includes Instructions With Full Factory Warranty
